Stopping the Tractor

1. Stop tractor travel with brakes.

causym CAUTION: Always place gear shift lever in park (P) before dismounting. Leaving transmission in gear with engine off WILL NOT prevent tractor from moving.

IMPORTANT: Tractor must be stopped before placing gear shift lever in park. Park pawl will not engage, and transmission may be damaged if tractor is moving.

2. Place gear shift lever in PARK.

3. Place EH directional reverser lever in NEUTRAL.

4. Lower all equipment to the ground.

5. Make sure all SCV levers are in NEUTRAL.

6. Make sure PTO is disengaged.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

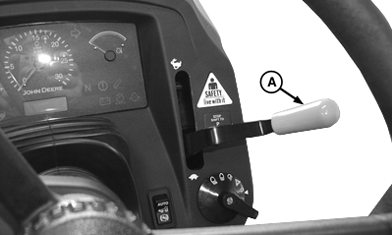

7. Pull hand throttle (A) back to slow idle position. Allow engine to idle for 2-5 minutes.

causym CAUTION: Remove key from ignition switch to prevent operation by untrained personnel.

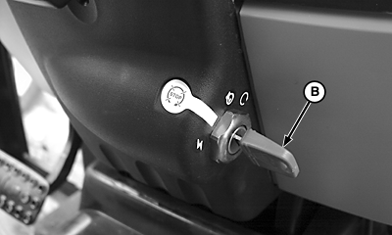

8. Turn key (B) to STOP position and remove from switch.

LV12625
LV12669


A-Hand Throttle
B-Key

OUMX005,0001A13 -19-27APR05-1/1
