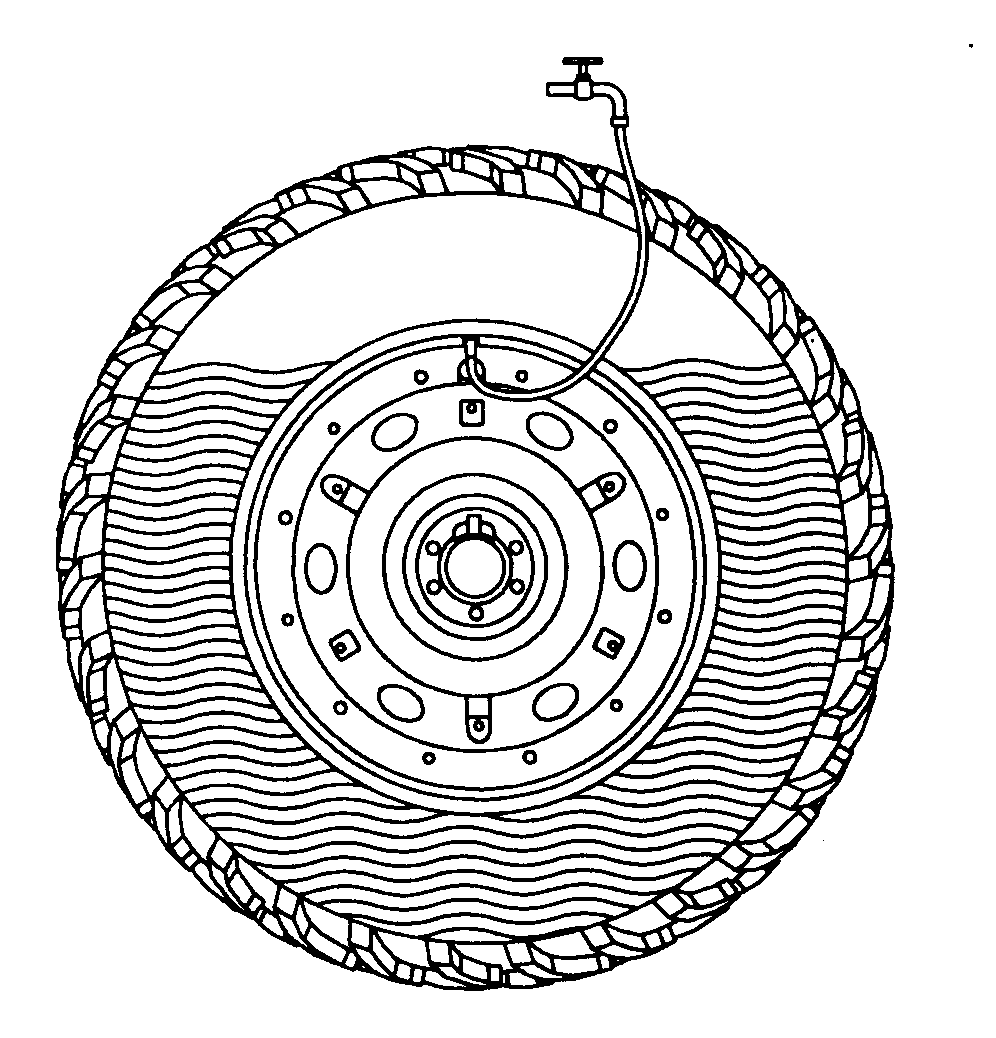

Using Liquid Ballast

CAUTION: Installing liquid ballast requires special equipment and training. Have the job done by your John Deere dealer or a tire service store.

IMPORTANT: NEVER fill tire to more than 90% full. More solution would leave too little air space to absorb shocks. Damage to tire could occur.

A solution of water and calcium chloride provides safe, economical ballast. Used properly, it will not damage tires, tubes, or rims.

Use calcium chloride to prevent water from freezing. A mixture of 0.4 kg of calcium chloride per liter (3.5 lb per gal) will not freeze solid above -45°C (-50°F).

NOTE: Use of alcohol as liquid ballast is not recommended. Calcium chloride solution is heavier and more economical.

Fill tubeless tires slightly above valve level (minimum 75% full). Less solution would expose part of rim, possibly causing corrosion. Tube-type tires may be filled to any level below 90%.

Charts show how much each tire size holds if filled to 75% full.

OUMX005,0001A1C -19-30AUG04-1/1
