Positioning Warning Lights for Transport (Open Station)

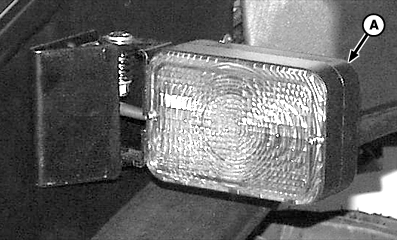

Turn warning lights (A) OUT away from tractor, for visibility during transport on public roads. Warning lights must be visible to drivers of other vehicles as they approach from the front or rear.

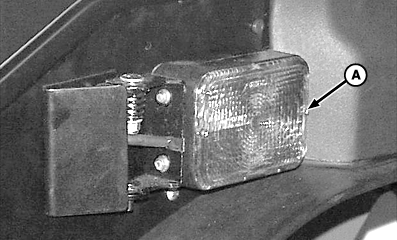

After transport, turn warning lights IN against tractor to storage position.

Storage position protects lights from accidental contact and damage and reduces tractor width for side-to-side clearance.

A-Warning Lights

OUMX005,0001A34 -19-04SEP04-1/1
