Using Turn Signals

CAUTION: Use turn signals to alert other vehicle drivers and pedestrians of a turn. Be aware of approaching traffic from all directions.

Move turn signal lever (A) to right for right-hand turn (shown) or left for left-hand turn. When turn signal is activated, amber and red lights on turn-side flash, while opposite side lights shine steady, with signal indicators (B) lighting in the same manner.

Manually return lever to center position after turning.

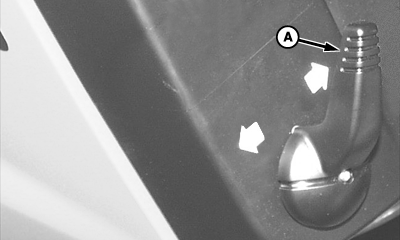

A-Turn Signal Lever

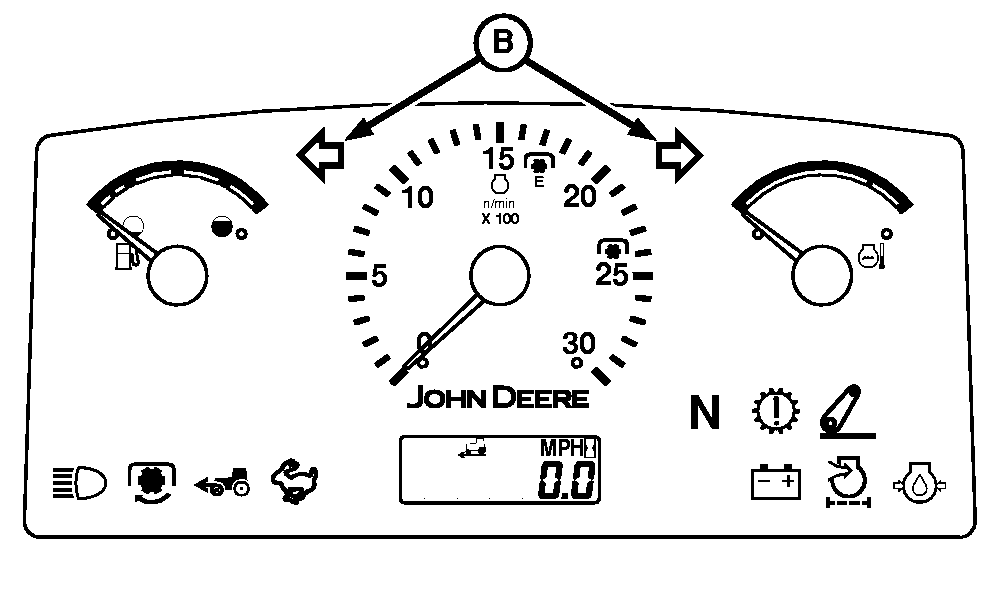

B-Turn Signal Indicator Lights

OUMX005,0001A35 -19-04SEP04-1/1
