Ballasting Front End for Transport

causym CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

Weights are heavy. Use proper lifting equipment. Approximate weight of QUIK-TATCH weights is 47 kg (104 lb).

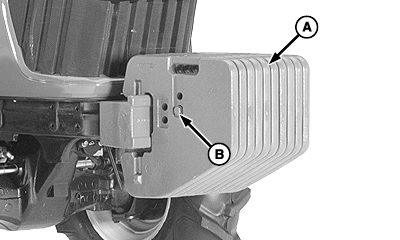

Up to 10 QUIK-TATCH ™ weights can be installed on the front of the tractor.

1. Install weights in pairs, one on each side of center (A).

2. To hold weights in place, run retaining bolts (B) through holes from side-to-side. Tighten to specification.

Specification

Ballast Weights Retaining Bolts -Torque  215 N·m (159 lb-ft)

LV9736


A-Ballast Center
B-Ballast Retaining Bolt

QUIK-TATCH is a trademark of Deere & Company

OUMX005,0001A38 -19-04SEP04-1/1
