Tighten Bolts-Adjustable Front Axle
Tighten bolts (A and B) to specifications.
Specification
|
Adjustable Front Axle-to-Knee Bolts (A)
-Torque
|
400 N·m
|
(295 lb-ft)
|
|
Adjustable Front Axle Disk-to-Flange Bolts (B)
-Torque
|
175 N·m
|
(130 lb-ft)
|

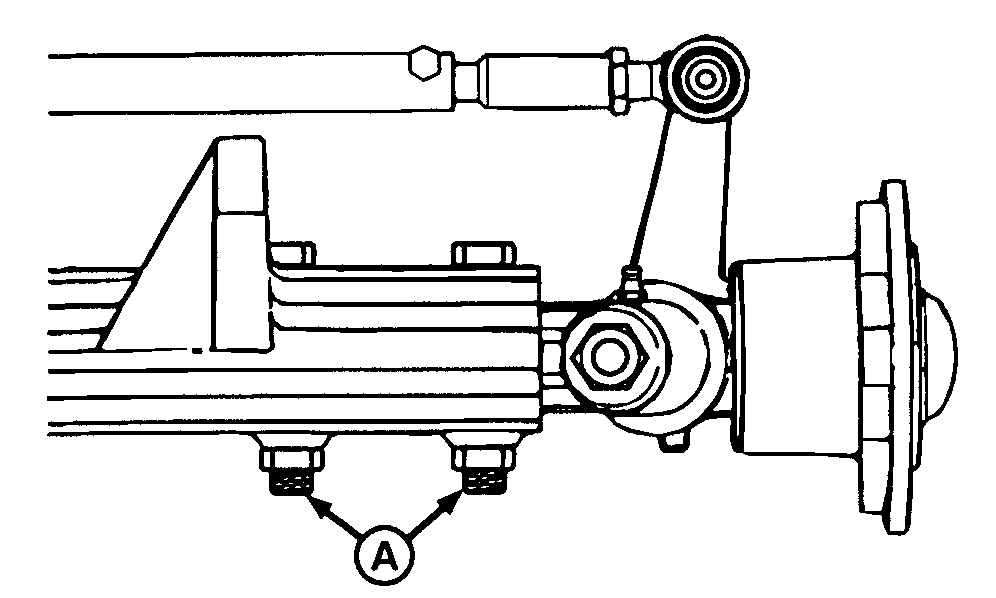

A-Axle-to-Knee Bolts

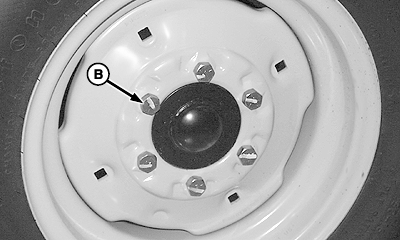

B-Disk-to-Flange Bolts
|
