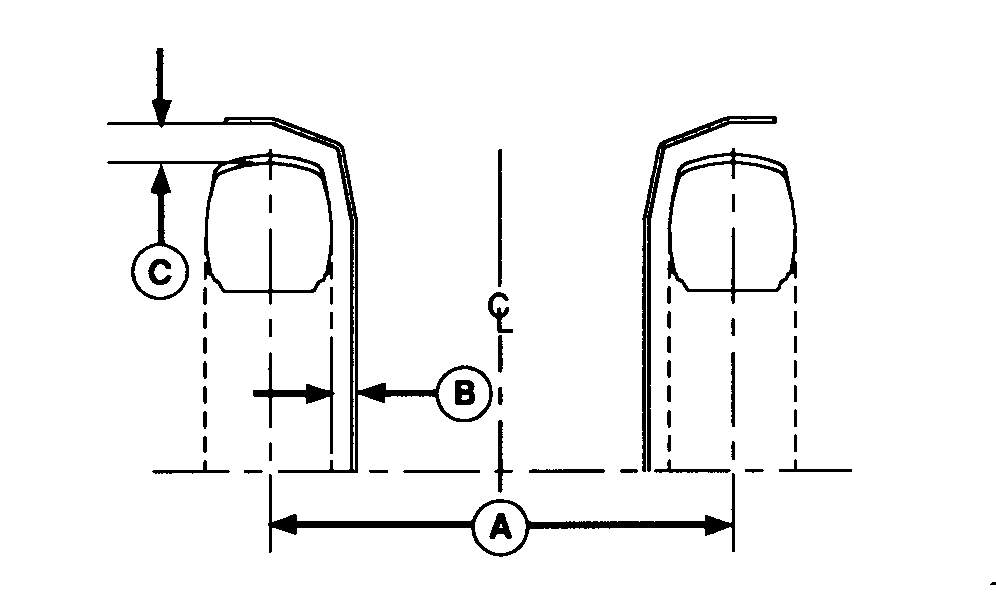

Observe Rear Wheel Tread Width LimitationsIMPORTANT: When changing rear tires, check clearance between tires and fenders. See chart for minimum/maximum width, inside tire-to-fender clearance and top clearance. |
|
| Min.-Max. Width (A) | Min.-Max. Inside Clearance (B) | Min. Top Clearance (C) | ||||
|---|---|---|---|---|---|---|
| Rear Tire Size | mm | (in.) | mm | (in.) | mm | (in.) |
| 12.4-24 | 904.4-1511.8 | (35.6-59.5) | 17.7-321.4 | (0.70-12.7) | 142 | (5.59) |
| 13.6-24 | 1003.4-1511.8 | (39.5-59.5) | 50.7-304.9 | (2.0-12.0) | 115 | (4.53) |
| 14.9-24 | 1003.4-1511.8 | (39.5-59.5) | 32.7-286.9 | (1.29-11.3) | 85.5 | (3.37) |
| 16.9-24 | 1108.4-1511.8 | (43.6-59.5) | 57.7-259.4 | (2.27-10.2) | 50 | (1.97) |
| 14.9-28 | 1003.4-1511.8 | (39.5-59.5) | 32.7-286.9 | (1.29-11.3) | 35 | (1.38) |
| 18.4-16.1 | 1089.2-1222.8 | (42.9-48.1) | 27.6-94.4 | (1.09-3.7) | 147.5 | (5.81) |
