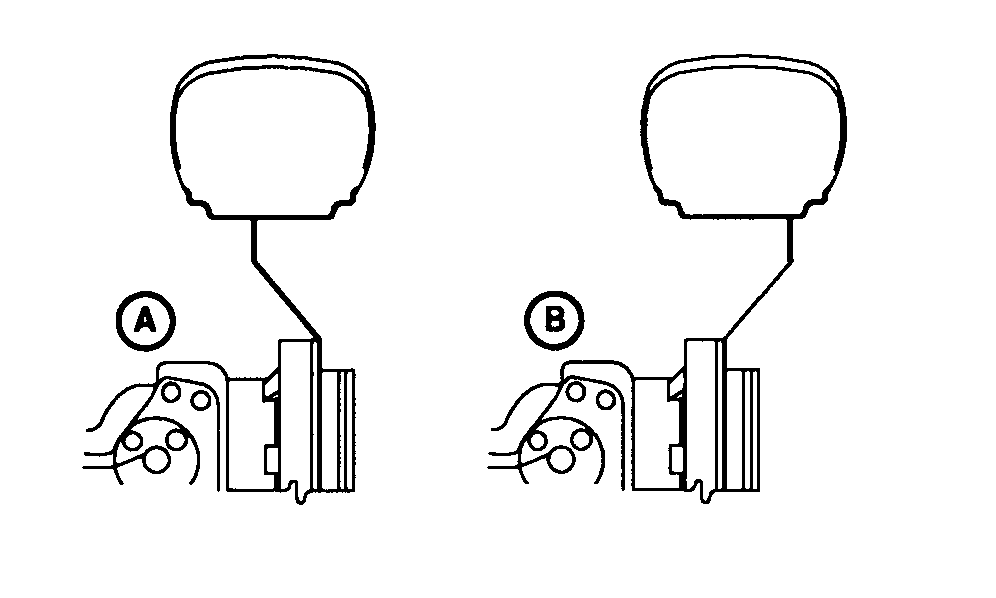

Tread Settings-Two-Position MFWD WheelsWheel tread on MFWD axle can be adjusted by exchanging the wheels from side-to-side. The relationship of the wheels is shown in the diagrams. IMPORTANT: After setting wheel spacing, tighten MFWD wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again. Specification
|
|
| TWO-POSITION MFWD WHEELS-TREAD WIDTH (Centerline-to-Centerline) | ||
|---|---|---|
| Tire Size | Wheel Position | |
| A | B | |
| 7.0-16 | 1078 mm (42.4 in.) | 1208 mm (47.6 in.) |
| 8.3-16 | 1077 mm (42.4 in.) | 1207 mm (47.5 in.) |
| 9.5-16 | 1100 mm (43.3 in.) | 1163 mm (45.8 in.) |
| 10.5/80-18 | 1190 mm (46.9 in.) | 1094 mm (43.1 in.) |
