Adjusting Seat

CAUTION: To avoid accidents, adjust seat before driving.

NOTE: Use these instructions as a guideline. Since everybody is different, the final settings must be determined by personal preferences. Each operator should make adjustments that suit them best.

The weight adjustment should be performed each time the height adjustment is changed.

For best results, make adjustments while seated in operating position.

Backrest Angle: Lift handle (A) and lean back to position backrest at a comfortable angle.

Fore-Aft Seat Position: Lift handle (B) and slide seat forward or backward to desired position. Make sure all controls are within easy reach.

NOTE: If height adjustment knob (C) is locked and will not rotate, turn weight adjustment knob (D) to a lighter setting or force seat lower.

Seat Height: Turn knob (C);

• Clockwise to raise seat
• Counterclockwise to lower seat

Ride Comfort (Weight): Adjust seat suspension to firm or soft ride. Unfold crank handle and turn knob (D);

• Clockwise for heavier setting and firmer ride
• Counterclockwise for lighter setting and softer ride

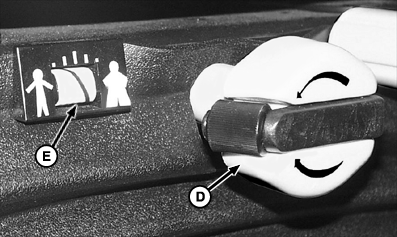

Indicator (E) shows current setting within overall weight range of 52-136 kg (115-300 lbs).

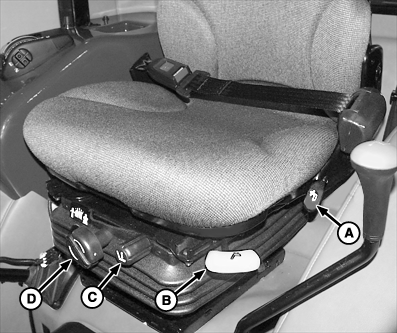

A-Backrest Angle Handle
B-Fore-Aft Handle
C-Seat Height Adjustment Knob
D-Weight Adjustment Knob
E-Weight Indicator
