Controlling Temperature

Blower speed control knob (C) turns blower on and controls blower speed. (See ADJUSTING BLOWER SPEED in this section.)

Adjusting Air Conditioning Temperature: Turn air conditioning temperature control knob (A) clockwise to circulate colder air through vents or counterclockwise to circulate warmer air.

Adjusting Heater Temperature: Turn heater temperature control knob (B) clockwise to circulate warmer air through vents or counterclockwise to circulate cooler air.

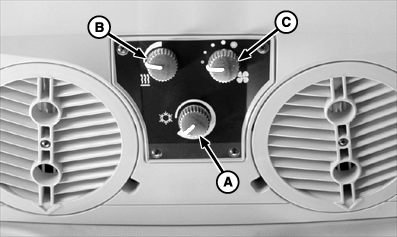

A-Air Conditioning Temperature Control Knob
B-Heater Temperature Control Knob
C-Blower Speed Control Knob

OUMX005,0001A4E -19-06SEP04-1/1
