Installing a Monitor

There are two locations used for attaching monitors and controls in the cab:

  • Front right-hand windshield frame (A)
  • Right-hand center post (B)

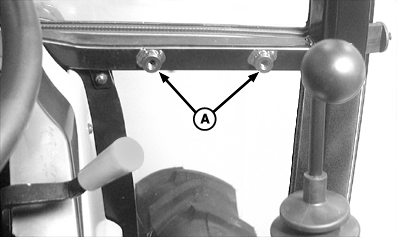

A-Front Mounting Location

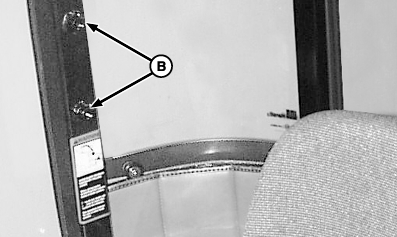

B-Right-Hand Side Mounting Location

LV9771
LV9772

OUMX005,0001A55 -19-06SEP04-1/1
