PowrReverser™ Indicators

Neutral indicator (A) lights when gear shift lever and EH directional reverser lever are both in Neutral. Indicator light will go out when gear shift lever is placed in Park position. Indicator light will flash if gear shift lever is in Neutral and EH directional reverser lever is in forward or reverse.

Information indicator (B) lights if a malfunction is detected in the transmission. If this indicator comes on, contact your John Deere dealer.

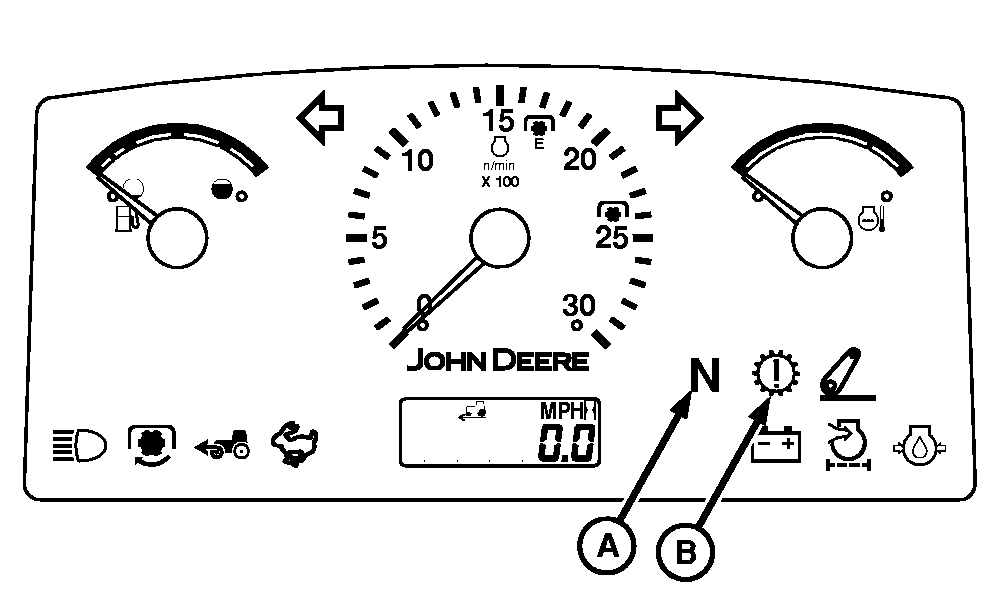

A-Neutral Indicator
B-Information Indicator

OUMX005,0001A58 -19-06SEP04-1/1
