Rockshaft Controls

CAUTION: To prevent possible injury, use only hitch control lever (A) when attaching or detaching implements. Do not use raise/lower switch (B).

NOTE: Engine must be running for electro-hydraulic (EH) hitch controls to work.

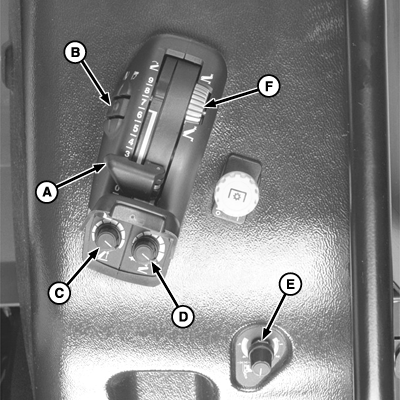

Rockshaft is controlled by hitch control lever (A) and raise/lower switch (B). Lift height can be limited by height-limit control (C).

Hitch control lever (A) is used to raise and lower hitch, and to set implement working depth. Pull lever rearward to raise; push lever forward to lower.

To make rockshaft ready for operation:

1. Start engine.
2. Move control lever (A) to position that corresponds to position of draft links.
3. Actuate raise/lower switch (B).

The implement can be raised and lowered independently of control lever (A) by raise/lower switch (B). This is of assistance when turning at the end of a field .

• Top part of raise/lower switch pressed: Implement is raised as high as height-limit control (C) setting.
• Bottom part of raise/lower switch pressed: Implement is lowered as far as control lever (A) setting.

Refer to following information for operational details of height-limit control (C), rate-of-drop control (D), load/depth control (E) and depth stop (F).

A-Hitch Control Lever
B-Raise/Lower Switch
C-Height-Limit Control
D-Rate-of-Drop Control
E-Load/Depth Control
F-Depth Stop

OUMX005,0001A5C -19-06SEP04-1/1
