Adjusting Depth Stop

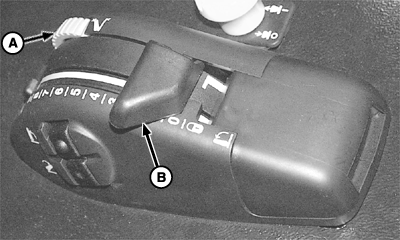

Push down and rotate wheel (A) to set stop to the desired working depth.

After lifting, the implement will be returned to the same working depth when hitch control lever (B) is pushed forward to contact the stop.

If necessary to lower hitch below the preset depth, the control lever can be lifted and pushed past the stop.

A-Depth Stop Wheel
B-Hitch Control Lever

OUMX005,0001A61 -19-06SEP04-1/1
