CAUTION:
Before connecting implement to 3-point hitch, load/depth control (A) must be moved to position control detent (B) to prevent unintentional raising or lowering of the rockshaft.
Hitch has two operating modes: Position control (B) and draft control (C).

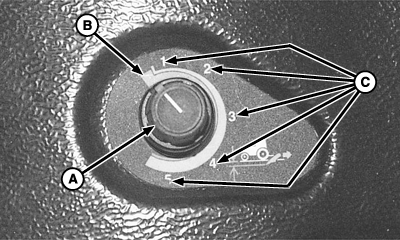

A-Load/Depth Control
B-Position Control Detent
C-Draft Control Settings
CAUTION:
Before connecting implement to 3-point hitch, load/depth control (A) must be moved to position control detent (B) to prevent unintentional raising or lowering of the rockshaft.
