Using Float Control

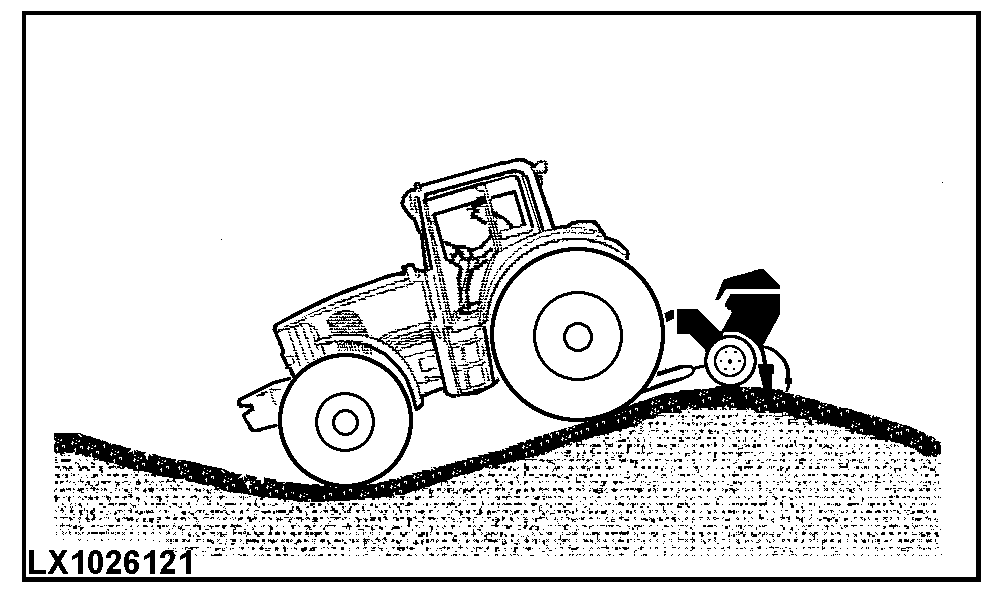

In "Float" (for rockshaft-controlled implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor. To obtain "floating" action, set load/depth control knob (A) to position control detent and move hitch control lever (B) as far forward as it will go.

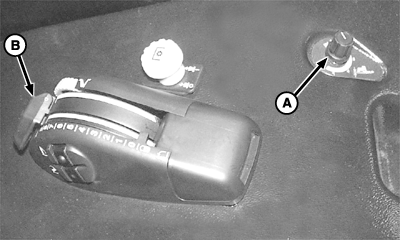

A-Load/Depth Control Knob
B-Hitch Control Lever

OUMX005,0001A65 -19-06SEP04-1/1
