Positioning Center Link

The center link attaching bracket has holes which allow three different positions for attaching the center link. The position affects the draft sensing sensitivity.

Should the following conditions occur, move center link to indicated holes to correct.

Condition Use Holes
Excessive hitch activity or hunting occurs in draft control operation. A or B
Rear of implement rises too much when lifted. The implement weight which can be lifted is reduced slightly with center link attachment in lower holes. A or B
Rear of implement drags the ground. B or C
Draft control lever range is too small. B or C
Hitch seems unresponsive in draft control operation and allows engine speed to drop too far before raising rockshaft. B or C



NOTE: Implements with Category IN mast height of 360 mm (14-1/8 in.) will normally use the lower attaching hole.

Implements with Category I mast height of 457 mm (18 in.) will normally use the center attaching hole.

Implements with Category II mast height of 483 mm (19 in.) will normally use the upper attaching hole.

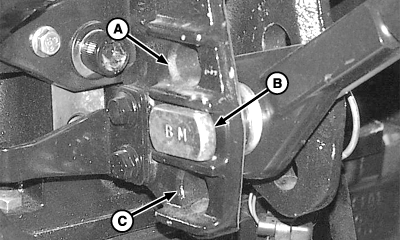

LV9806


A-Upper Hole
B-Middle Hole
C-Lower Hole
