Hydraulic Valves

Rear Selective Control Valves (SCVs)

Basic two-section valve (A) is standard.

Deluxe three-section valve (B), with adjustable flow control and detents, is available as an option.

Rear SCVs are lever operated.


A-Basic Two-Section Valve
B-Deluxe Three-Section Adjustable Valve

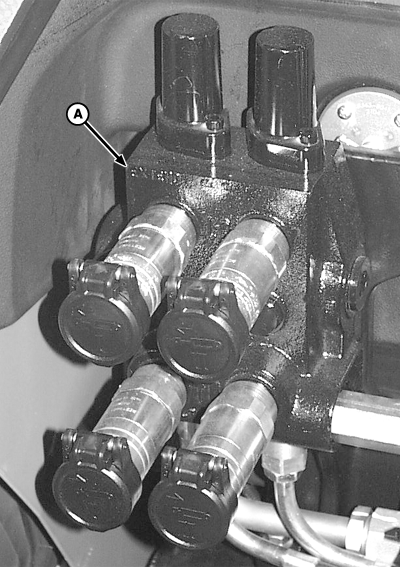

LV9818

Basic Two-Section Valve

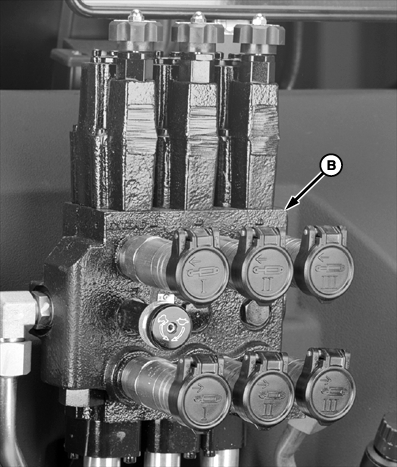

LV9649

Deluxe Three-Section Valve

OUMX005,0001A6D -19-06SEP04-1/2

Mid-Mount Valve

Two-function mid-mount valve (A), with multi-function control lever (B), are available as an option for operating additional equipment, such as a loader. Mid-mount valve is located under right-hand side platform or cab.


A-Two-Function Mid-Mount Valve
B-Multi-Function Control Lever

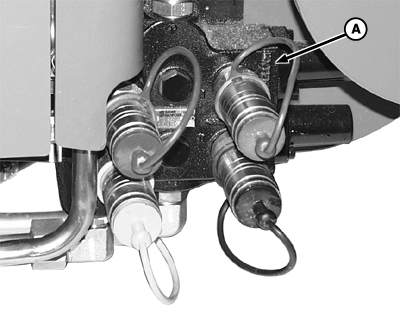

LV9819

Two-Function Mid-Mount Valve

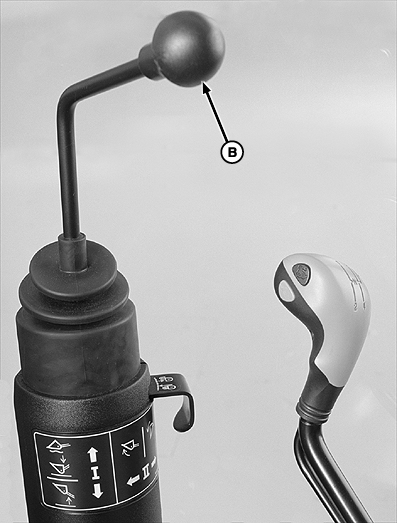

LV9820

Multi-Function Control Lever

OUMX005,0001A6D -19-06SEP04-2/2
