Adjusting Flow Control-Deluxe SCV (If Equipped)

causym CAUTION: Excessive operating speed may cause injury or machine damage.

Decrease flow rate if hydraulic oil overheats, remote cylinder moves too quickly or if hydraulic motor turns too fast.

Flow control adjustment only affects the number I section of rear SCV. Other valve sections are not affected by this adjustment.

To adjust flow rate and operating speed, loosen lock nut (A) and turn flow control knob (B):

  • Counterclockwise "Rabbit"-Increase flow rate and speed
  • Clockwise "Turtle"-Decrease flow rate and speed

NOTE: If detent kicks out before end of cycle, use SCV I and adjust flow control.

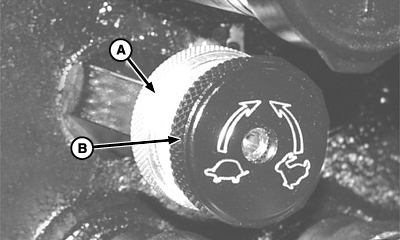

LV9658


A-Lock Nut
B-Flow Control Knob
