Observing Drawbar Load Limitations

IMPORTANT: Certain heavy equipment, such as a loaded single-axle trailer, can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough terrain. Do not exceed maximum static vertical load on drawbar.

Drive slowly with heavy loads.

Drawbar MAXIMUM Static Vertical Load - Specification

Fully Extended Position -Static Vertical Load 650 kg (1430 lb)
PTO Mid-Position -Static Vertical Load 760 kg (1675 lb)
Fully Retracted Position -Static Vertical Load 1120 kg (2470 lb)

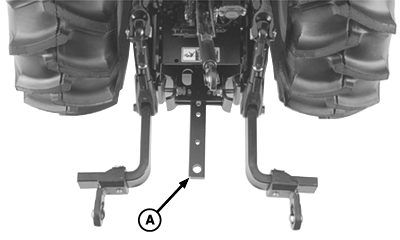

A-Drawbar

LV9811

Fully Extended

LV754

PTO Mid-Position
