Selecting Drawbar Position

For maximum traction and efficiency, drawbar (A) should be positioned in the center, fully retracted position. (See implement operator's manual for more information.)

IMPORTANT: For drawn PTO-driven implements, drawbar must be extended to proper position.

Drawbar Positions
PTO Shaft PTO Shaft End-to-Hitch Pin Hole (B)
540 rpm (6 spline) 356 mm (14 in.)
1000 rpm (21 spline) 407 mm (16 in.)



If needed, drawbar can be offset from center or allowed to swing.


A-Drawbar
B-Measure From/To

LV754

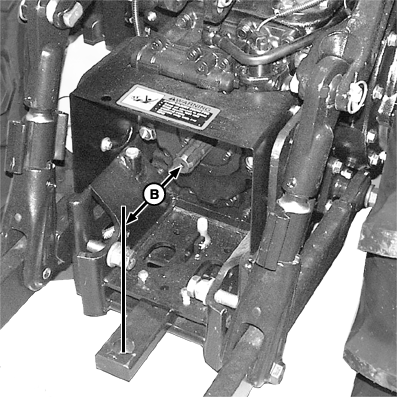

PTO Mid-Position

LV9812

OUMX005,0001A78 -19-06SEP04-1/1
