Adjusting Drawbar Length and Offset

1. Lift retaining latch (A).

2. Remove drawbar pin (B).

3. Slide drawbar to desired position.

4. Install drawbar pin and rotate latch to retain in-place.

5. Drawbar can be locked in the center position, using drawbar cap screws (C). It can also be offset to either side, using one drawbar cap screw in the center hole.

Drawbar cap screws (C) can be removed to let drawbar swing free. This is helpful when turning under load. There are two holes on either side of the pivot for cap screw storage.

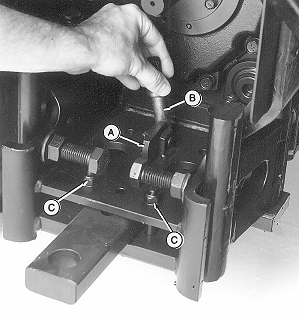

LV755


A-Retaining Latch
B-Drawbar Pin
C-Drawbar Cap Screws (2 used)

OUMX005,0001A79 -19-06SEP04-1/1
