Adjusting Steering Wheel Tilt and Height (Cab)

Tilt: Lift lever (A) and move steering column to desired angle. Release lever to lock into position.

Height: Loosen telescope release ring (B) and adjust steering wheel to desired height. Tighten ring to lock into position.

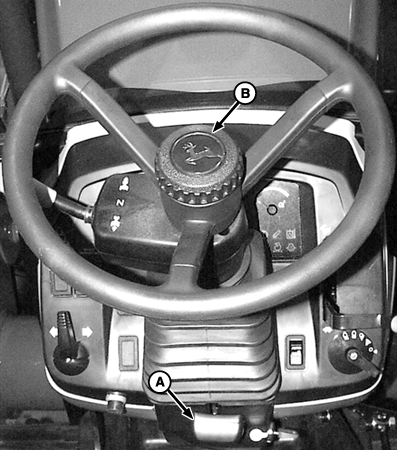

A-Steering Wheel Tilt Lever
B-Steering Wheel Telescope Release Ring

OUMX005,0001A80 -19-07SEP04-1/1
