Locating Fusible Links
Electrical circuits are protected by two fusible links:
-

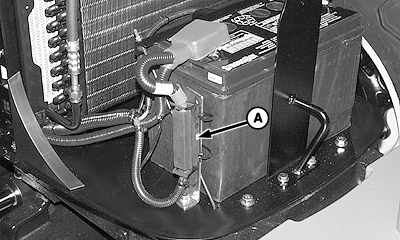

Fusible link (A) is located under hood along right-hand side of battery
-

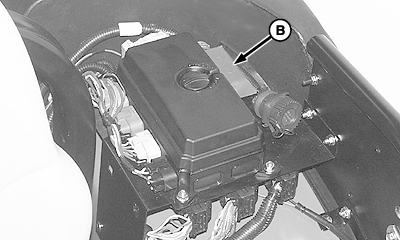

Fusible link (B) is located near main fuse and relay load center. (See LOCATING FUSES in this section.)
A-Fusible Link
B-Fusible Link
|
Open Station Shown; Cab Similar
|
