Locating Fuses-Open Station

NOTE: A fuse and relay reference label is provided inside cover.

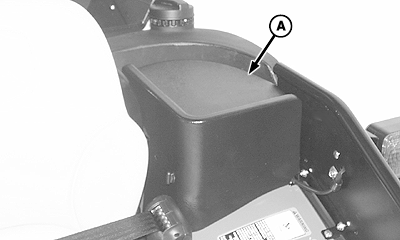

Remove primary cover (A) to access fuses (B).

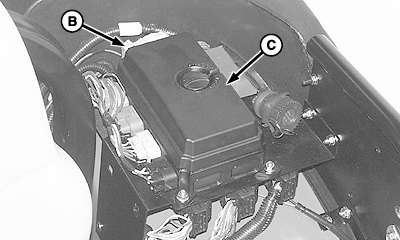

Remove secondary cover (C) to access main fuse and relay center.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

A-Primary Cover
B-Fuses for PowrReverser™ Transmission
C-Secondary Cover

OUMX005,0001A88 -19-09SEP04-1/1
