Locating Fuses-Cab

NOTE: A fuse and relay reference label is provided inside cover.

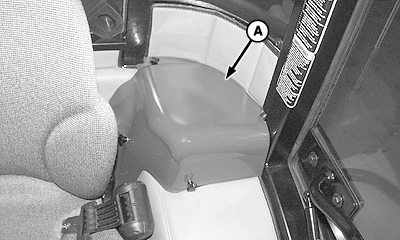

Remove cover (A) to access main fuse and relay load center.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating Color
5 Amp Orange
10 Amp Red
15 Amp Blue
20 Amp Yellow
30 Amp Green



IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

LV9847
LV9848

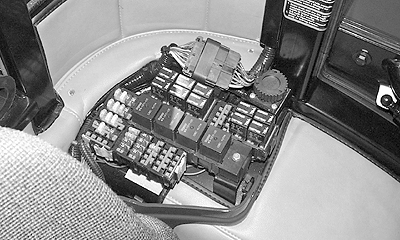

Main Fuse and Relay Load Center


A-Cover

OUMX005,0001A89 -19-09SEP04-1/1
