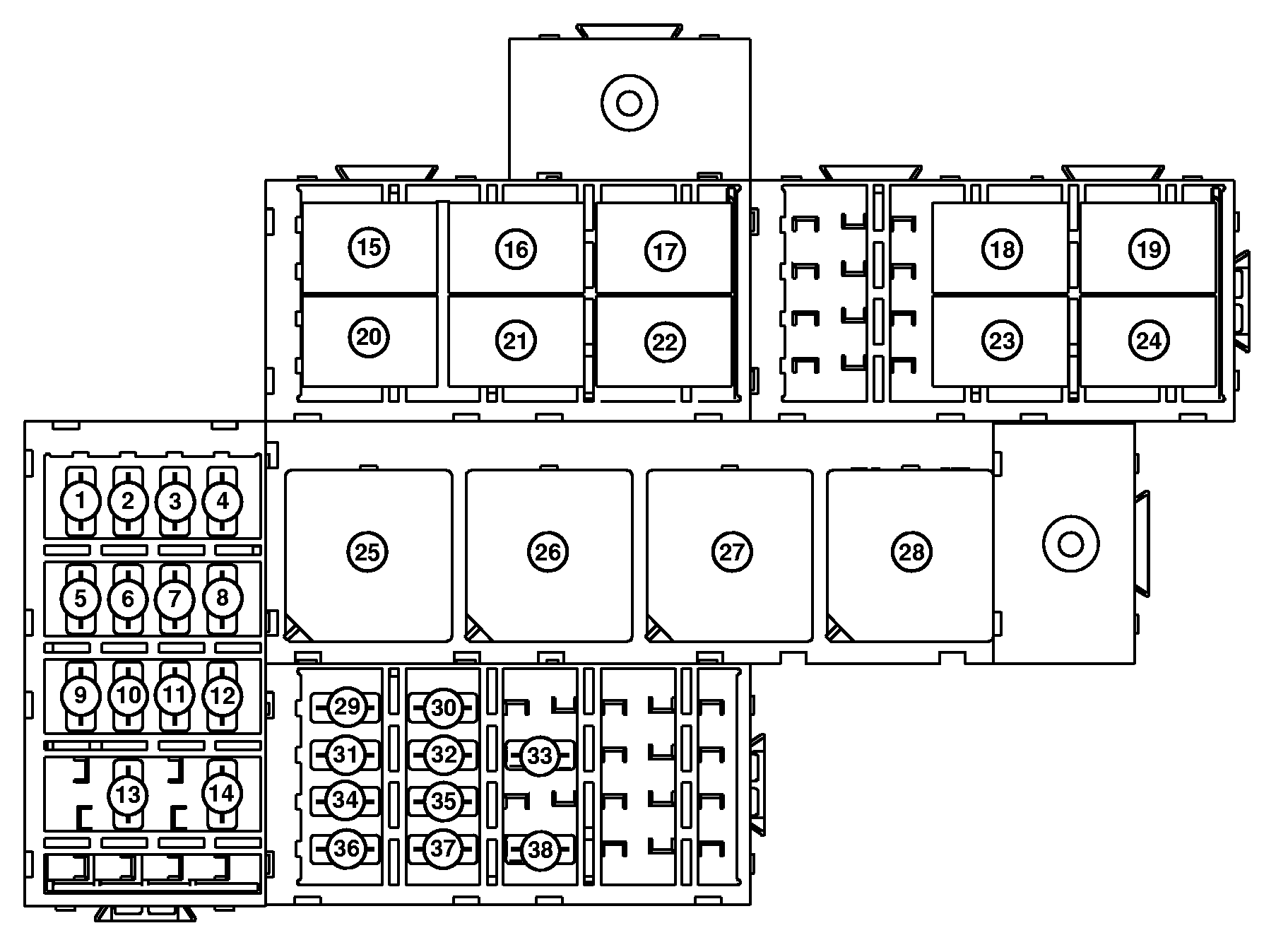

1-Fuse F2, 30-Amp: Warning Light Power Relay, Left Turn Relay and Right Turn Relay
2-Fuse F1, 20-Amp: Ignition Switch
3-Fuse F3, 5-Amp: Dome Light and Radio
4-Fuse F7, 10-Amp: Horn
5-Fuse F10, 30-Amp: Trailer Power Relay
6-Fuse F4, 20-Amp: Light Switch
7-Fuse F23, 30-Amp: HVAC
8-Fuse F8, 5-Amp: Instrument Cluster
9-Fuse F6, 30-Amp: Junction Block and CNVC Outlet
10-Fuse F13, 20-Amp: Rear Work Lights
|
11-Fuse F24, 20-Amp: Wiper System Relay
12-Fuse F9, 5-Amp: Instrument Cluster Diagnostics (Used only to enable diagnostic mode. Socket must be empty for normal operation.)
13-Fuse F14, 20-Amp: Front Work Lights
14-Fuse F19, 10-Amp: EH Controller and Service Advisor
15-Front Work Lights Relay
16-Neutral Relay
17-Wiper System Relay
18-Warning Light Power Relay
19-Left Turn Relay
|
20-Rear Work Light Relay
21-Trans Enable Relay
22-ELX Relay
23-Flash Logic Relay
24-Right Turn Relay
25-Accessory Relay
26-Trailer Power Relay
27- HVAC Relay
28-Turn/Warn Relay
29-Fuse F11, 30-Amp: Junction Block, CNVC Outlet, Back-Up Alarm
30-Fuse F12, 10-Amp: Radio
31-Fuse F5, 15-Amp: Low Beam Headlights and Loader Lights
32-Fuse F15, 10-Amp: Taillights
33-Fuse F16, 15-Amp: High Beam Headlights and Loader Lights
|
34-Fuse F18, 10-Amp: Fuel Shut Off Solenoid, Elx Relay, Seat Switch and Wheel Speed Sensor
35-Fuse F17, 10-Amp: FNR Switch
36-10-Amp Fuse for MFWD Switch, Brake Pedal Switch, Neutral Relay, Counter Shaft Speed Sensor, Rear PTO Switch, High/Low Shifter Switch and EH Control Unit
37-10-Amp Fuse for EH Control Unit
38-5-Amp Fuse for EH Control Unit Diagnostics
|
