Replacing Warning Light Bulb-Cab

NOTE: Bulb replacement procedures for front and rear warning lights are the same. Rear left-hand side shown.

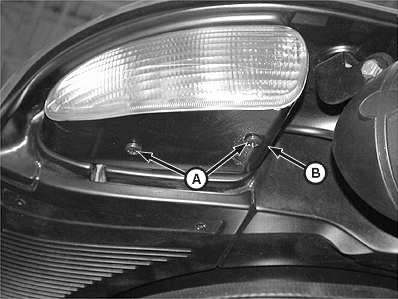

1. Remove mounting screws (A) securing housing (B) to cab roof.

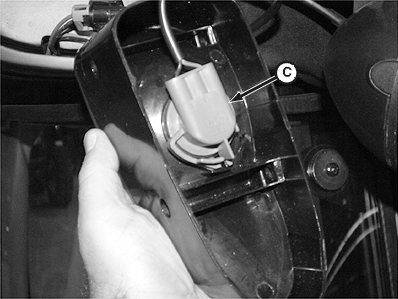

2. Remove bulb and socket (C) from housing.

3. Pull bulb from socket.

4. Install new bulb and socket into housing.

5. Install housing and screws to cab roof.


A-Mounting Screw (2 used)
B-Housing
C-Bulb and Socket

LV5559
LV5560

OUMX005,0001A8C -19-09SEP04-1/1
