Replacing Taillight Bulb

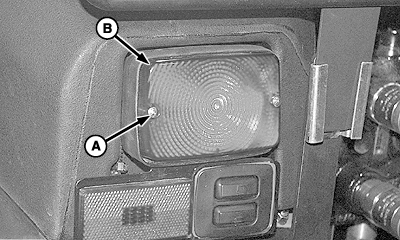

1. Remove two screws (A) and lens (B).

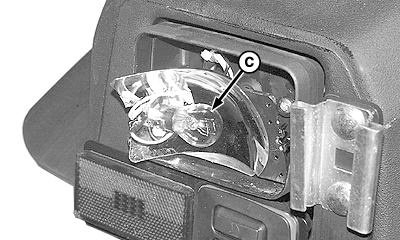

2. Push in and twist bulb (C) to remove from socket.

3. Install new bulb, lens and screws.


A-Lens Screw (2 used)
B-Lens
C-Light Bulb

LV9851

Left-Hand Side Shown

LV9852

OUMX005,0001A8D -19-09SEP04-1/1
