Replacing Work Light Bulb-Cab

causym CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See HANDLING HALOGEN LIGHT BULBS SAFELY in this section.)

NOTE: Bulb replacement procedures for front and rear work lights are the same. Rear left-hand side shown.

1. Remove screw cover by prying in screw cover slot (A) with a screwdriver.

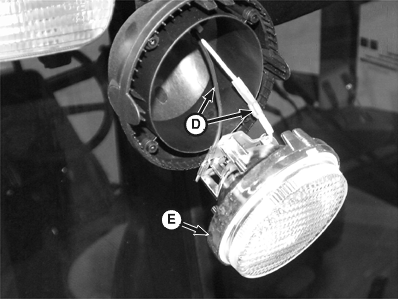

2. Remove retaining ring screws (B), retaining ring (C) and bulb (E).

3. Disconnect wiring connectors (D).

4. Install new bulb and connect wiring connectors.

5. Install bulb, retaining ring and screws.

6. Install cover.


A-Screw Cover Slot
B-Retaining Ring Screw (4 used)
C-Retaining Ring
D-Wiring Connector (2 used)
E-Bulb
