Replacing Transmission-Hydraulic Filter

SERVICE INTERVAL -
  INITIAL - 100 HOURS
  REGULAR - 600 HOURS



1. Remove cover (A) and filter.

2. Separate filter element (B) from cover. Discard filter element.

3. Clean cover, threads on filter housing and seal inside cover.

4. Assemble filter and cover. (Filter should "snap" into cover.)

5. Install cover and filter assembly.

6. Run engine several seconds and recheck transmission-hydraulic oil level.

7. Add transmission-hydraulic oil as required. (See Fuel, Lubricants and Coolant section.)

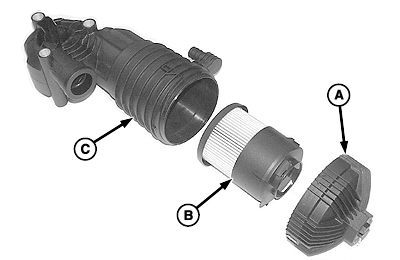

A-Cover
B-Filter Element
C-Housing

LV10294
LV9610

OUMX005,0001A93 -19-10SEP04-1/1
