Lubricating Steering King Pins (MFWD)

SERVICE INTERVAL - 50 HOURS *
*Daily or Every 10 Hours if operated in extremely wet conditions



Apply several shots of general purpose grease (see Fuel, Lubricants and Coolant section) to king pin lube fittings.

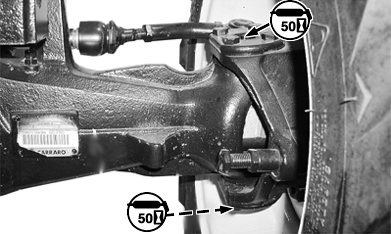

LV10303

Right-Hand Side Shown

OUMX005,0001A9B -19-11SEP04-1/1
