Lubricating 3-Point Hitch

SERVICE INTERVAL - 300 HOURS



Lubricate fittings on BOTH left- and right-hand lift links with several shots of multipurpose grease. (See Fuel, Lubricants and Coolant section.)

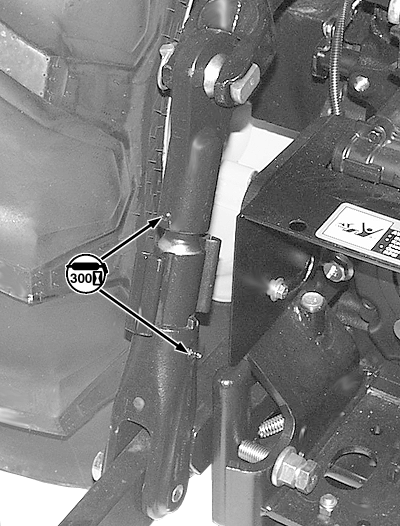

LV10307

Left-Hand Lift Link Shown

OUMX005,0001A9D -19-11SEP04-1/1
