OUMX005,0001AA0 -19-30SEP08-1/2

Your tractor is equipped with interlocks to prevent inadvertent movement when the engine is started.

2. Move gear shift lever (A) to any position except PARK or NEUTRAL position.

3. Move EH Directional Reverser lever (B) to forward or reverse position.

4. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere dealer immediately .

Engine should start in NEUTRAL or PARK positions only.

NOTE: Engine will start with PTO switch up (engaged) or down (disengaged), but PTO shaft will not rotate.

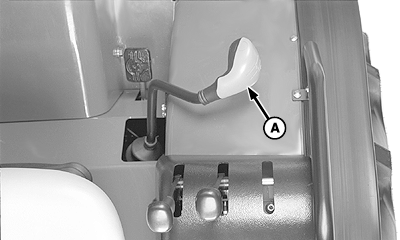

A-Gear Shift Lever

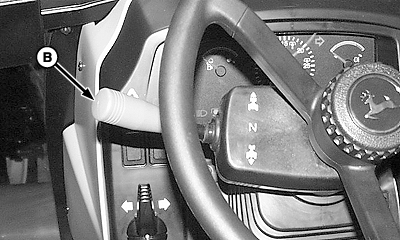

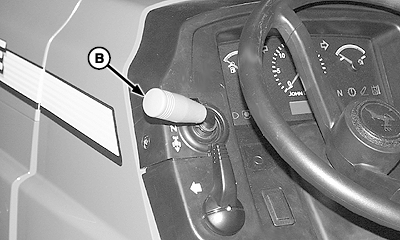

B-EH Directional Reverser Lever

OUMX005,0001AA0 -19-30SEP08-2/2
