Keeping Cab Protection System Installed Properly

SERVICE INTERVAL -
  INITIAL - 10 HOURS
  REGULAR - 50 HOURS



causym CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system, mounting cap screws should be tightened to specification.

Inspect cab protection system mounting hardware every 50 hours for proper torque or replacement.

Lift up rubber floor mat to access FRONT mounting hardware (A).

LV1689

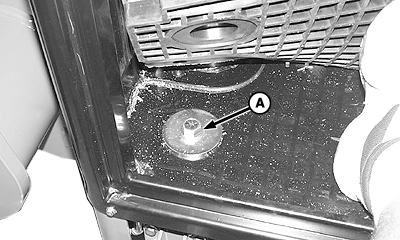

LV10315

Front Mount (Left-Hand Side Shown)


A-Front Mounting Cap Screw and Washer (2 used)

OUMX005,0001AA8 -19-11SEP04-1/2

Check front and rear mounting hardware (A) for proper torque.

Specification

Cab Protection System Mounting Cap Screws -Torque 500 N·m (368 lb-ft)

Check isolators (B) for cracks or wear. See your John Deere dealer to replace cab mounts if necessary.


A-Mounting Cap Screw (4 used)
B-Isolator (4 used)

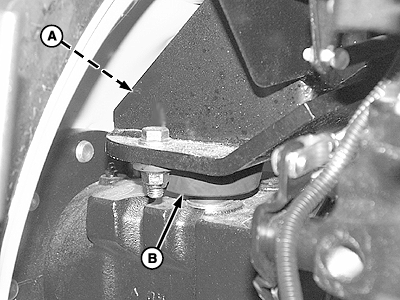

LV10317

Rear Cab Mount (Left-Hand Side Shown)

LV10316

Front Cab Mount (Left-Hand Side Shown)

OUMX005,0001AA8 -19-11SEP04-2/2
