Checking Front Axle Pivot Pin End Play

SERVICE INTERVAL - 600 HOURS



Ask your John Deere dealer to check the front axle pivot pin (A) for correct end play.

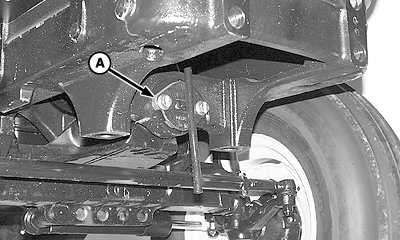

A-Front Axle Pivot Pin

LV10318

Adjustable Front Axle Shown

OUMX005,0001AA9 -19-11SEP04-1/1
