Connecting Cylinder Hoses-Rear SCV

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by moving all rear SCV control levers and mid-mount joystick in all directions to relieve pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

1. Identify extend and retract hoses. Extend hoses should be connected to top couplers (A); retract hoses to bottom couplers (B).


A-Top (Extend) Couplers
B-Bottom (Retract) Couplers

X9811
LV9674

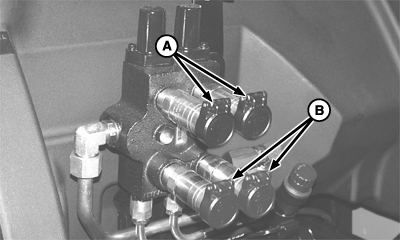

Basic Two-Section Valve

LV9675

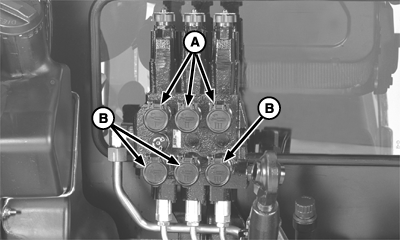

Deluxe Three-Section Valve

OUO1023,000279D -19-09NOV05-1/2

2. Remove dust caps (if equipped) from hose end.

3. Open coupler covers (A).

causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

4. Making sure hose end and coupler are clean, push hose tip firmly into coupler. Pull on hose to make sure positive connection was made.

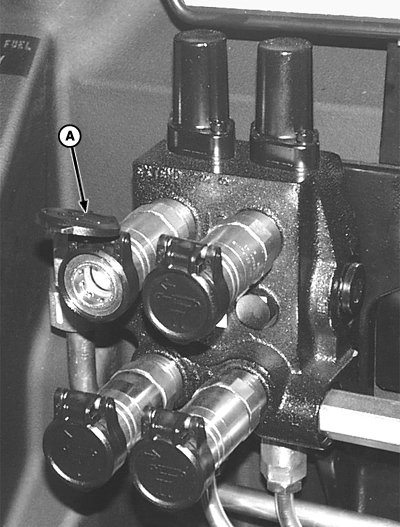

A-Coupler Covers

LV9673
