Connecting Cylinder Hoses-Mid-Mount Valve (If Equipped)

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by moving all rear SCV control levers and mid-mount joystick in all directions to relieve pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

X9811

OUO1023,000279E -19-09NOV05-1/2

NOTE: Hose connections at mid-mount valve are color-coded.

1. Match hoses to couplers using color-coded dust caps/plugs.

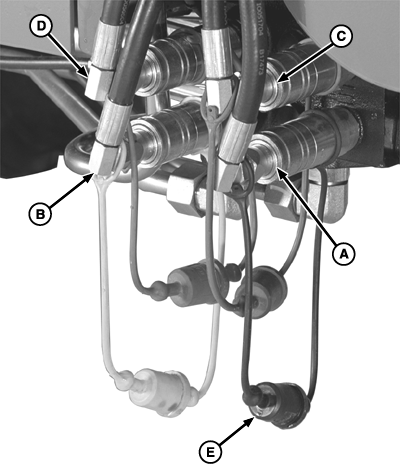

Key Tie Band/Plug/Cap Color Hydraulic Function
A Black Bucket Cylinder-Rod End
B Yellow Bucket Cylinder-Head End
C Blue Lift Cylinder-Head End
D Red Lift Cylinder-Rod End



2. Remove dust caps from hose ends.

3. Pull dust plugs from valve couplers.

causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

4. Making sure hose end and couplers are clean, push hose tip firmly into coupler. Pull on hose to make sure positive connection was made.

5. Connect mating (color-coded) plugs and caps (E) together.

LV9824

OUO1023,000279E -19-09NOV05-2/2
