Bleeding Fuel System-5425, 5525 and 5625

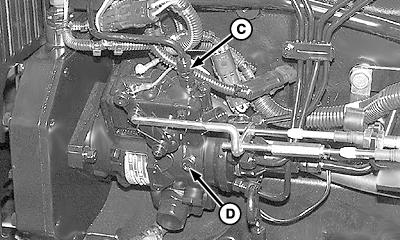

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A. IMPORTANT: To avoid injection pump damage, DO NOT attempt to start the engine while bleeding the fuel system. 1. Check fuel level. Fuel tank must be full. Add if necessary.2. Raise hood and loosen fuel return line (C). 3. Loosen filter base bleed screw (B). 4. Push priming pump (A) until fuel runs out smoothly without spitting, then tighten bleed screw (B). 5. Loosen injection pump bleed screw (D). 6. Push priming pump (A) until fuel runs out smoothly without spitting, then tighten fuel return line (C). 7. Tighten bleed screw (D) and lower hood. |
|
CAUTION:
Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.
OUO1023,0002866 -19-18SEP06-1/1 |
