Checking MFWD Axle Wheel Hub Oil Level-If Equipped

1. Park tractor so that oil fill mark (A) on MFWD hub is level with the ground.

2. Remove fill plug (B). Oil level should be even with bottom of the fill plug hole.

3. If level is low, add oil through same hole. John Deere HY-GARD oil is recommended. (See MFWD Axle Housing and Wheel Hub Oil in section 75 Fuel, Lubricants, and Coolant.)

4. Apply pipe sealant withTEFLON ® , or equivalent, to threads of plug.

5. Install plug and tighten to specifications.

Specification

Plug-to-Hub -Torque 70 N·m (52 lb-ft)

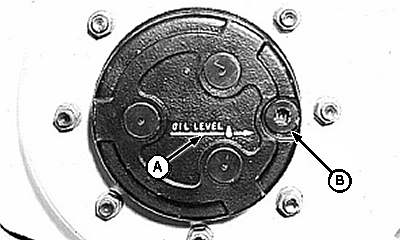

LV1941


A-Oil Fill Mark
B-Oil Fill Plug

TEFLON is a trademark of Du Pont Co.

OUO1023,00029D3 -19-17OCT06-1/1
