Replacing Battery

1. Raise hood and remove side screens.

causym CAUTION: To avoid sparks, disconnect negative (ground) cable first and connect it last.

WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

2. Remove nut and disconnect negative (ground) battery cable (C).

3. Remove nut and disconnect positive cable (D).

4. Loosen nuts (A) and rotate battery hold-down (B) down.

5. Remove battery.

6. When replacing battery, use John Deere battery or equivalent. (See your John Deere dealer.)

Specification

Battery -Volts 12 Volts
BCI Group 31
Cold Cranking Amps (CCA) at -18°C (0°F) 750

7. Install battery in reverse order of removal.

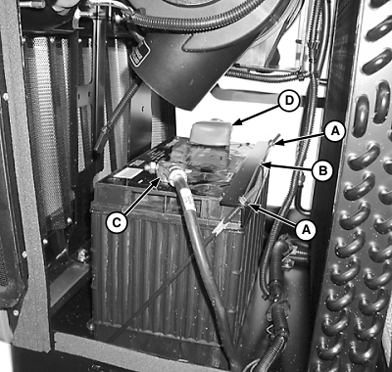

LV12889

Battery-Front of Tractor


A-Nut (2 used)
B-Battery Hold-Down
C-Negative (-) Cable
D-Positive (+) Cable

OUO1023,0002A3F -19-04DEC06-1/1
