Checking Neutral Start System

Your tractor is equipped with interlocks to prevent inadvertent movement when the engine is started.

2. SyncShuttle™ Transmission: Move gear shift lever (A) to any position except PARK or NEUTRAL position.

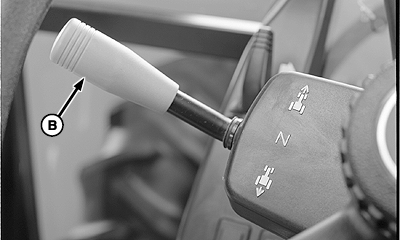

PowrReverser™ Transmission: Move EH Directional Reverser lever (B) to forward or reverse position.

3. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere dealer immediately .

Engine should start in NEUTRAL or PARK positions only.

A-Gear Shift Lever
B-EH Directional Reverser Lever

OUO1032,000169D -19-08APR05-1/2

2. Move PTO lever (A) forward to engaged position.

3. Start engine. If engine starts in this position, neutral start system should be repaired. See your John Deere dealer immediately .

Engine should start with lever in disengaged position only.

NOTE: If equipped with EH PTO Switch, engine will start with switch up (engaged) or down (disengaged), but PTO shaft will not rotate.

A-PTO Lever

OUO1032,000169D -19-08APR05-2/2
