Removing Side Screens

1. Raise the hood and secure with the support rod.

2. Pull side screen (A).

3. Tilt screen outward and lift from lower mounting slots.

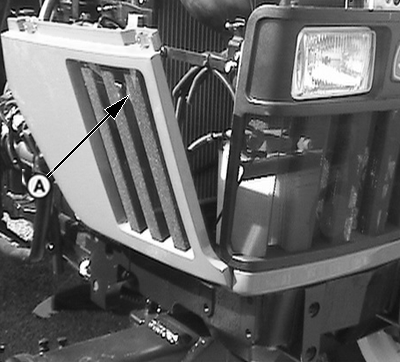

A-Side Screens

PY4498

NR25796,0000158 -19-26APR06-1/1
