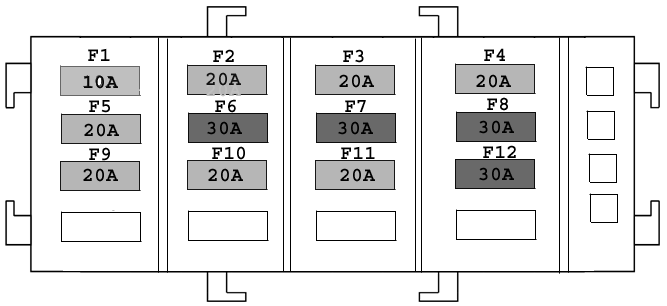

F1-10 amp-Instrument Cluster
F2-20 amp-Fuel Shut-off Solenoid
|
F3-20 amp-Flasher
F4-20 amp-Flood Lights
F5-20 amp-Spare
F6-30 amp-Key Switch
|
F7-30 amp-Horn & Light Switch
F8-30 amp-Optacc Relay
F9-20 amp-Turn Light
|
F10-20 amp-Right Head Lamp
F11-20 amp-Left Head Lamp
F12-30 amp-Spare
|
