Replace Headlight Bulb

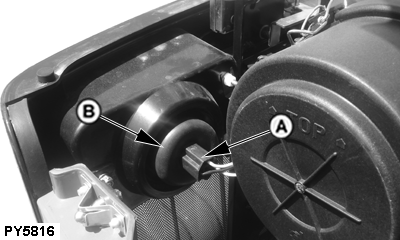

1. Remove headlight connector (A).

2. Remove dust boot (B).


A-Headlight Connector
B-Dust Boot

PY5816

NR25796,000016D -19-30JUN06-1/2

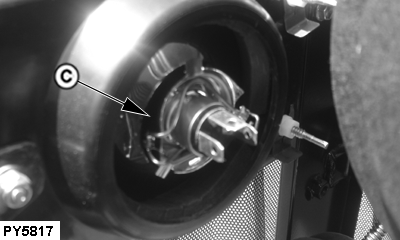

3. Twist collar (C).

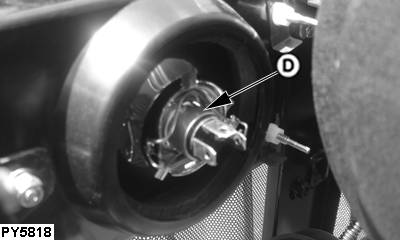

4. Remove bulb (D).

causym CAUTION: A halogen bulb is pressurized and may shatter. Protect bulb against abrasions and scratches.

To guard against personal injury, wear protective eyeglasses and clothing when handling bulb. Turn power off when installing and before removing bulb. Dispose off bulb with care.

Allow bulb to cool before removing.

Read and follow all bulb manufacturers installation instructions.

5. Install bulb, collar, seal and connector in reverse order.


C-Collar
D-Bulb

PY5817
PY5818

NR25796,000016D -19-30JUN06-2/2
