Replace Tail Light Bulb

1. Remove cap screws (A).

2. Remove tail light lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble tail light.

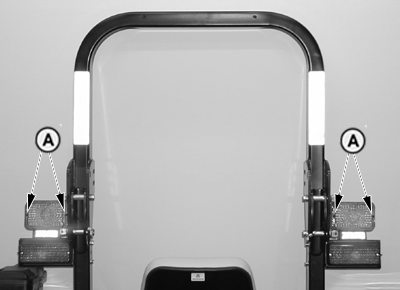

A-Tail Light Cap Screws (2 used)

PY4059

NR25796,000016E -19-26APR06-1/1
