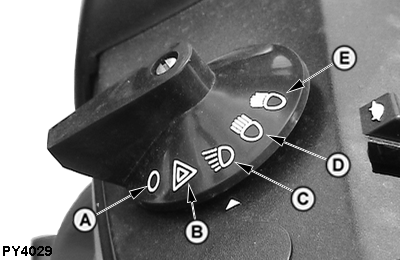

Light Switch Positions

Tractor light switch has five positions:

A- Turns off all lights.

B- Turns on warning lights only. For driving on highway during daytime.

C- Field position, turn on bright front headlights.

D- Turns on bright headlights, tail lights, and warning lights. For highway driving during night time

E- Turns on dim headlights, tail lights, and warning lights. Turn switch to this position before meeting other vehicles.

A-Lights Off
B-Warning Lights Position
C-Field Light
D-Full-Beam Headlights, Tail Lights and Warning Lights Position
E-Low-Beam Headlights, Tail Lights and Warning Lights Position

PU00210,000019B -19-07JUN06-1/1
