Lubricate Front Axle Pivot Pin(s)

Lubricate MFWD front pivot (A) and rear pivot (B) with several shots of multipurpose grease. Adjustable axle pivot pin (C) also requires lubrication of the front and rear pivot bushing zerks with multipurpose grease. (See Fuels, Lubricants and Coolant section).

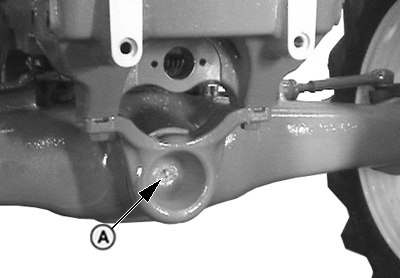

A-MFWD Front Pivot Zerk

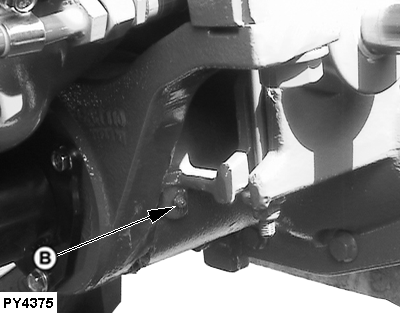

B-MFWD Rear Pivot Zerk

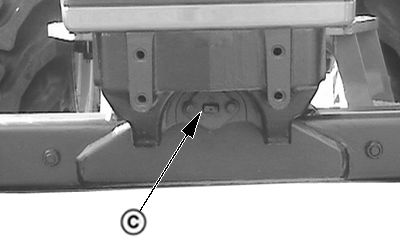

C-2WD Axle Pivot Pin

PU00210,00001CE -19-11JUL06-1/1
