Adjusting Toe-In - MFWD Tractor

1. Loosen jam nuts (A) on both ends of tie rod.

2. Adjust both sides equally by rotating the inner rod (B) to lengthen or shorten tie rod, as needed to obtain toe-in of less than 3 mm (1/8 in.).

Tie Rod Rotation Approximate Change
1/8 turn 4 mm (3/16 in.)
1/4 turn 8 mm (3/8 in.)
1/2 turn 16 mm (5/8 in.)



3. Tighten jam nuts to specification.

Specification

MFWD Tie Rod Jam Nuts -Torque 120 N·m (88 lb-ft)

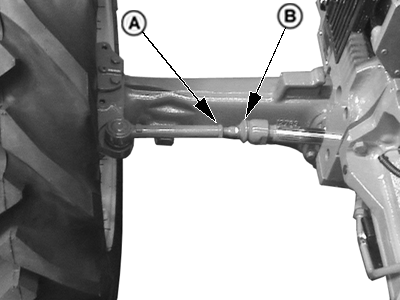

PY4490


A-Tie Rod Jam Nuts
B-Inner Rod

PU00210,000021C -19-22AUG06-1/1
