Preparing Implement

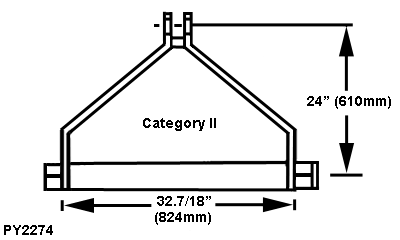

Category II implements should have the top hole of the implement mast located 610 mm (24 in.) above the lower pins. Drill another hole in top mast or extend top mast if necessary.

Category Mast Height Width Between Lower Pins Pin Size
      Lower Upper
II 610 mm
(24 in.)		 824 mm
(32-7/16 in.)		 28.7 mm
(1-1/8 in.)		 25.5 mm
(1 in.)
